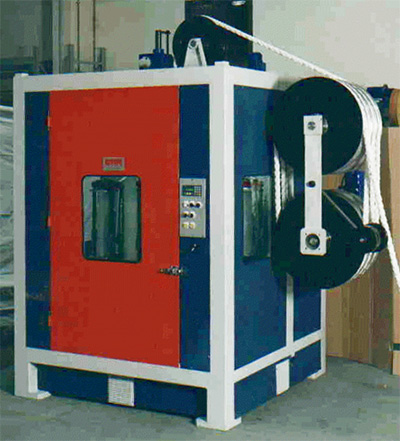

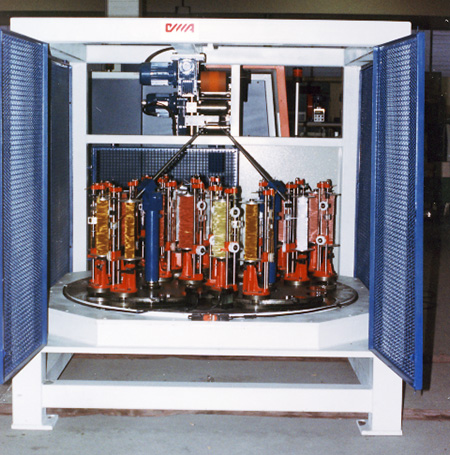

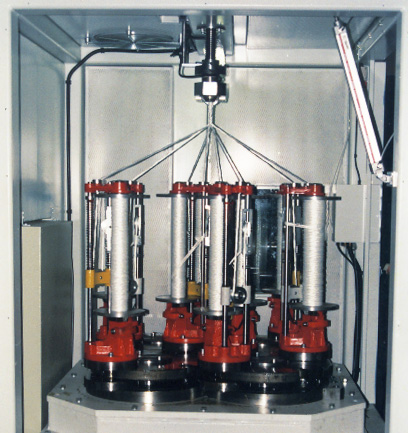

440-TSC

Vertical braiders

[ gallery ] [ comparative tables ]

Specifically developed for the production of large diameter round, square and helical ropes using traditional and/or synthetic fibers for larger diameters or long lengths.

Main Applications

Large diameter ropes
Medium diameter ropes on long length.

Technical Features

Vertical axis
Gears and horn gears oil bath lubrication
Variable braiding pattern, 1:1, 2:1 or 2:2
Left and right carrier threading
Carrier tension variation from 1 to 12 kg. by adjustable charge compression springs
Electronic Axis Control for immediate pitch adjustment and synchronisation between extraction system and braiding deck
AC motor drive controlled by frequency converter for carrier speed adjustment without steps
Overload motor protection
Line Forward/Reverse jog and Capstan Forward/Reverse jog
Automatic machine shut off for broken end, empty bobbin, empty supply spool, inner core run out or uneven tension
Integrated sound proofing enclosure grants noise level lower than 80 dBA
Machine in conformity with European safety Rules 2006/42/CE.
